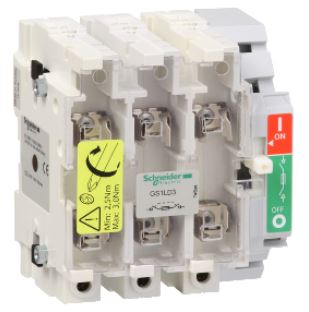

GS1LD3 TeSys GS - switch-disconnector fuse - 3 P - 160 A - DIN 0

TeSys

TeSys GS

GS1 L

Switch-disconnector-fuse

Protection

3P

3t

3 NO

160 A (at 40 °C)

125 A at 440 V 2 poles in series per phase DC-23A
125 A at 440 V 2 poles in series per phase DC-23B
125 A at 690 V with terminal cover AC-23A
125 A at 690 V with terminal cover AC-23B
160 A at 400 V AC-23A
160 A at 400 V AC-23B
160 A at 500 V AC-23A
160 A at 500 V AC-23B

DIN

0

AC
DC

50/60 Hz

Direct right side

Plate

750 V AC 50/60 Hz

8 kV

90 kW at 400 V
110 kW at 500 V
110 kW at 690 V

1600 A at 400 V AC-23B

100 kA at 400 V with protection by gG fuses

1280 A at 400 V (AC-23B)

20 kA

10000 cycles

1000 cycles AC-23A
1000 cycles AC-23B
200 cycles DC-23A
200 cycles DC-23B

Power circuit: bars
Power circuit: lugs-ring terminals50…95 mm² flexible

Power circuit: 12 N.m - on bars
Power circuit: 12 N.m - on lugs-ring terminals

IEC 60947-3

CE

TH

IP20 conforming to IEC 60529 (with terminal cover)

-20…70 °C

-40…80 °C

850 °C fuse cover conforming to IEC 60695-2-1
960 °C body conforming to IEC 60695-2-1

162 mm

192 mm

136.5 mm

1.8 kg

Yes

Compliant
EU RoHS Declaration

Yes

Yes

18 months
