NFT 3AC Ligowave Dual Band

NFT 3ac

High-performance dual-radio access point equipped with two 3x3 MIMO 802.11ac radios operating in the 2.4 and 5 GHz bands concurrently and reaching 1.750 Gbps data rate



https://www.ligowave.com/public/downloads/datasheets/THAILAND%20datasheets/NFT%203ac_Thailand.pdf

https://www.ligowave.com/products/nft-3-ac


Integrated security radio
The NFT 3AC has an integrated dual-band radio dedicated for security and RF management. It also allows doing real-time spectrum analysis wthout any interuption to the the main radios dedicated for access

Specification

Independent 720 MHz CPU
Dual-radio (3x3) design with 802.11ac support
Up to 1.750 Gbps data-rate
Up to 29 dBm radio output power
5 dBi integrated omni-directional antennas
Dedicated security radio
2 Gigabit Ethernet ports (802.3af/at)
Innovative award winning design
Flexible wall and ceiling mounting bracket
(Available with and without PoE adapter.)

Coverage radius:
150 meters (492 ft)

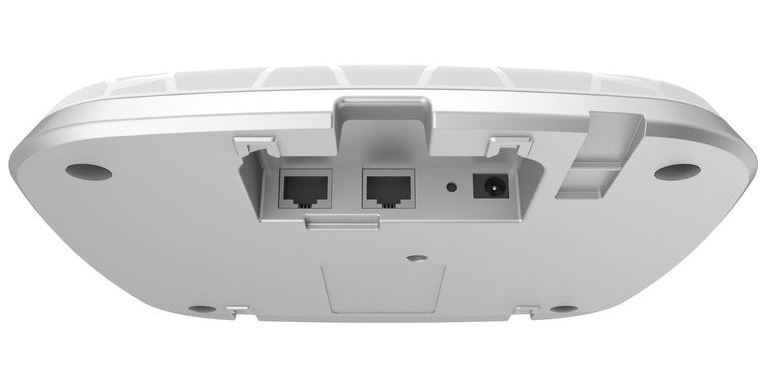

Interfaces:
Ethernet 1: 1000 Base-T supporting 802.3 af/at with passive PoE (37 - 56V)
Ethernet 2: 1000 Base-T
Reset button

Specifications Detial

WirelessWLAN standard        IEEE 802.11 a/b/g/n/ac
Radio mode                          MIMO dual 3x3
Operating mode                   Access point, repeaterRadio
frequency band                   2.402 - 2.484 GHz (country dependent) FCC 2.412 - 2.462 GHz (CH1-CH11)
                                           5.170 - 5.875 GHz (country dependent) FCC 5.745 - 5.825 GHz (CH149-CH161)
Transmit power                   2.4 GHz: 16 dBm per chain @ MCS23 (For Thailand only)
                                           5 GHz: 22 dBm per chain @ MCS23 (For Thailand only)
Channel size                        20, 40, 80 MHz
Modulation schemes            802.11 ac: OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK)
                                           802.11 a/g/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
                                           802.11 b: DSS (CCK, DQPSK, DBPSK)Data rates
                                           802.11 ac @ 80 MHz: 1300, 1170, 975, 780, 585, 390, 292.5, 195, 97.5 Mbps
                                           802.11 n @ 40 MHz: 450, 405, 360, 270, 180, 135, 90, 45 Mbps
                                           802.11 a/g @ 20 MHz: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
                802.11 b @ 20 MHz: 11, 5.5, 2, 1 Mbps
Duplexing scheme        Time division duplex
Wireless security        WPA/WPA2 Personal, WPA/WPA2 Enterprise, WACL, Hotspot (UAM)
Roaming                Yes

Antenna

Type                6x internal omni-directional antennas
Gain                2.4 GHz: 3 dBi
                5 GHz: 3 dBi
Coverage radius            150 meters (492 ft)

Wired

Interface            2 x 10/100/1000 Base-T, RJ-45
Networking

Operating mode            Bridge, router IPv4 and IPv6
Management IPv4            Static, dynamic
Management IPv6            Static, dynamic stateless, dynamic stateful
Secondary IPv4            SupportedVLAN 802.1Q for management and data
Virtual SSID            8 per each radio
Client                isolation Supporte

Services

Services            SNMP server, NTP client, WNMS clien

Power

Power method            802.3 af/at with passive PoE (37 - 56V) support

Power suppply            100 – 240 VAC to 48 VDC PoE (included)
Power consumption        19 W

Management
System monitor            SNMP v1, syslog

Physical

Dimensions            Length 191.5 mm (7.54 ‘’), width 191.5 mm (7.54 ‘’), height 35.5 mm (1.4 ‘’)
Weight                650 g (22.9 oz)
Mounting            Suspended ceiling mount and wall/ceiling  mount

Environmental

Operating temperature        10°C (14 F) ~ +55°C (+131 F)
Humidity                              0 ~ 90 % (non-condensing)

Regulator
Certification            FCC/IC/CE
