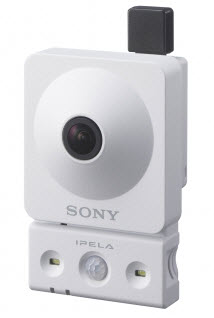

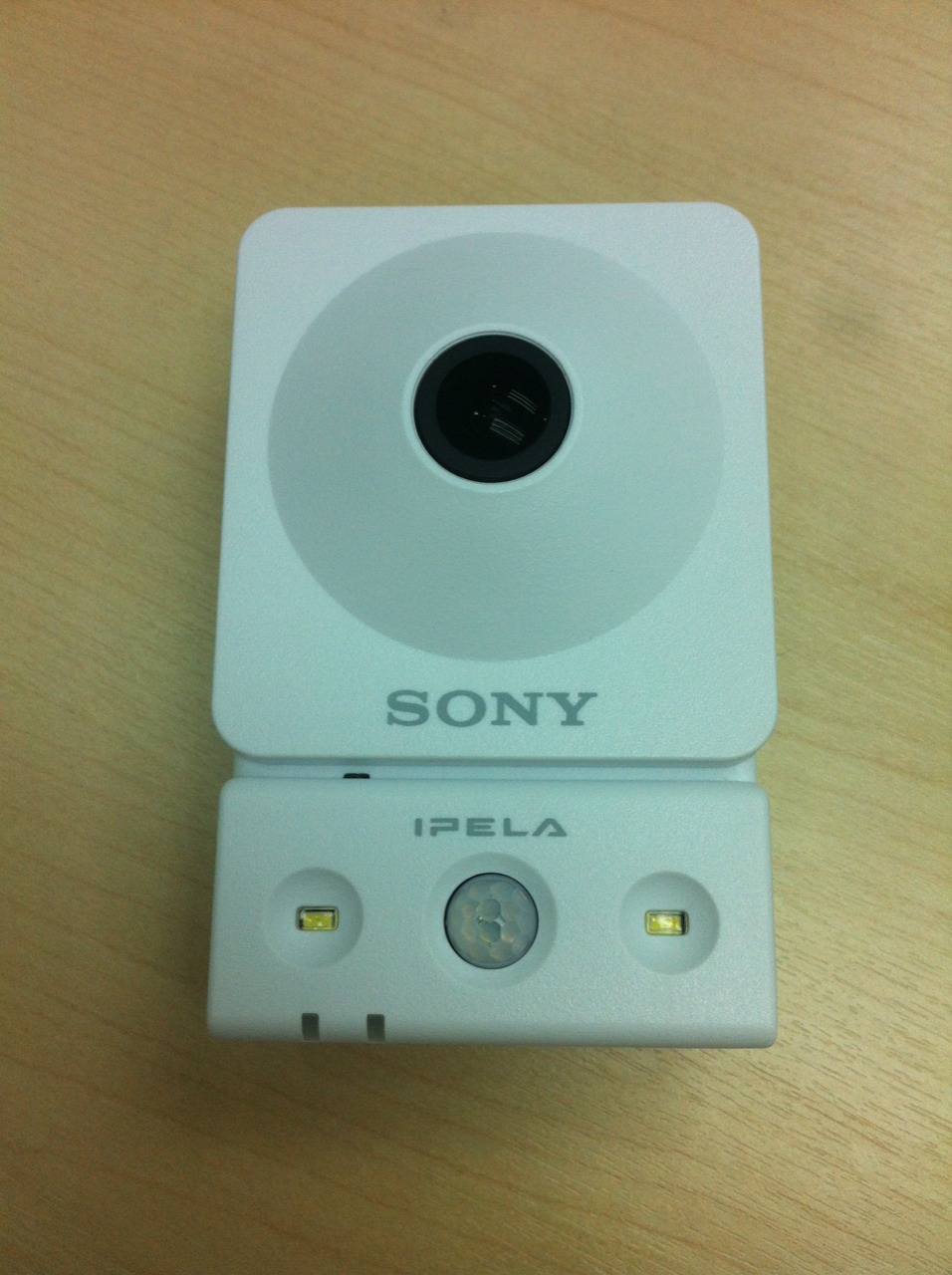

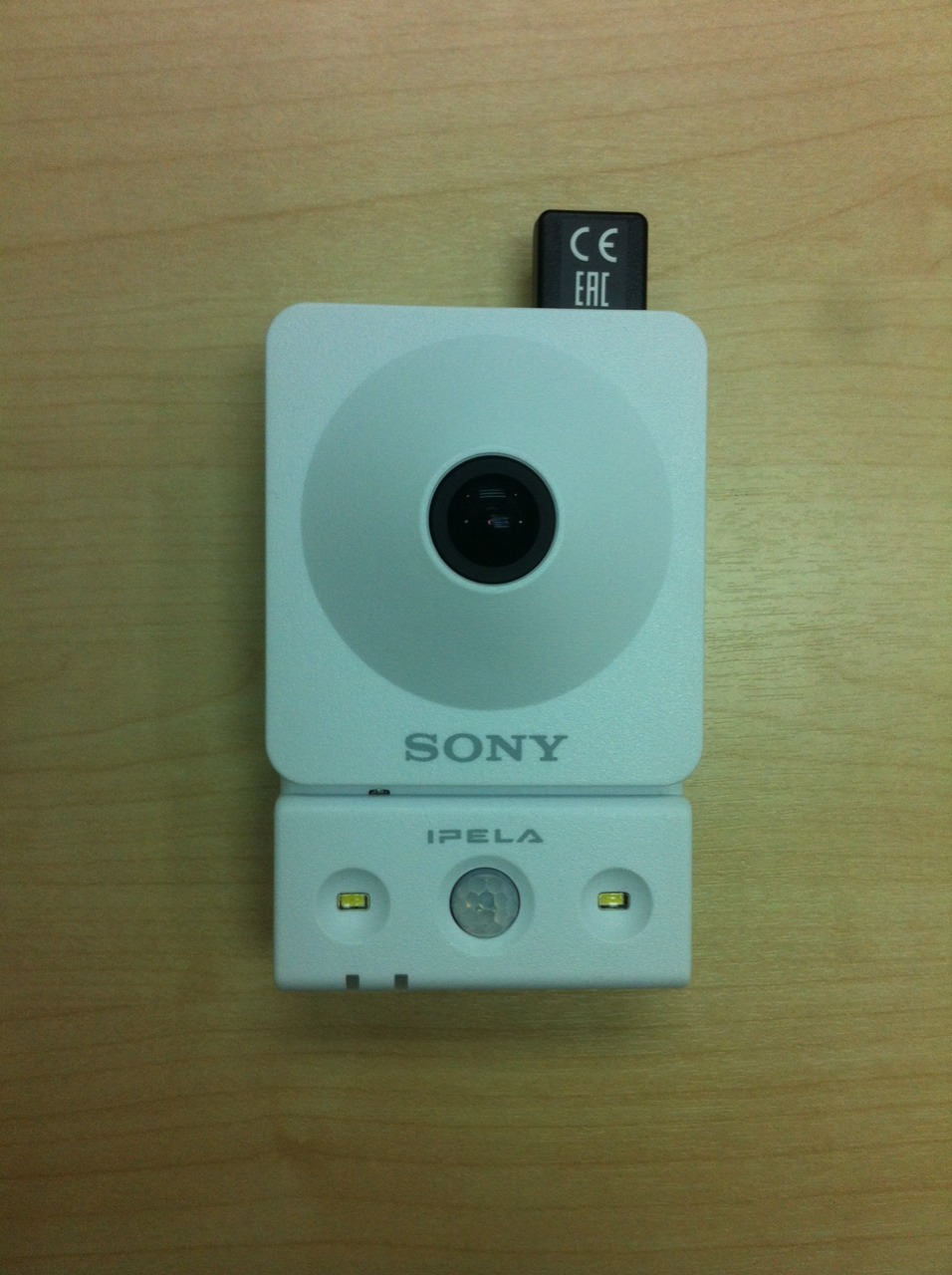

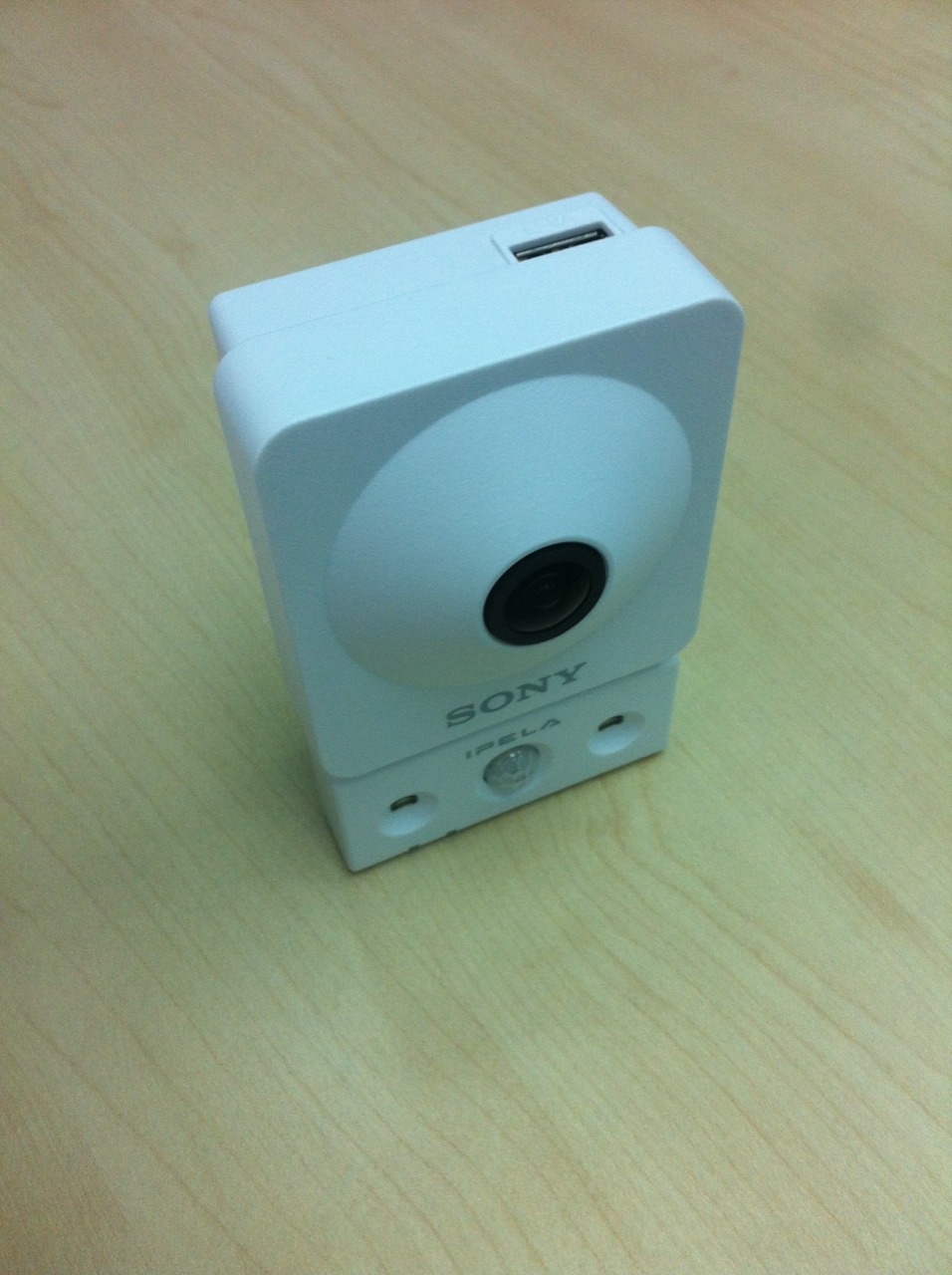

Overview SNCCX600W
Network Fixed HD Camera – C Series
720p/30fps Network Camera with White-light LED Illuminators Powered by IPELA ENGINE™ EX Technology
สอมถามสินค้า คลิกที่ หนูเลยค่ะ
สุดคุ้มค่า กล้องวงจรปิดจาก Sony ไม่ง้อ เครื่องบันทึก สามารถ ใส่ miniSD card เพื่อ Recorder พร้อมสนับสนุน VCloud ซึ่งเก็บข้อมูลผ่าน Cloudได้
มาพร้อม บันทึกเสียงในตัว
เหมาะสำหรับติดที่บ้านและ home office รองกับการทำงานผ่าน internet
รองรับการทำงานถ่ายที่มืด มี LED Write
Technical Specifications
Please be aware that the features/specifications can differ from country to country
Collapse all
Camera
| Image Sensor |
1/4-type progressive scan Exmor CMOS sensor |
|---|
| Number of Effective Pixels |
Approx. 1.3 Megapixels |
|---|
| Signal System |
No |
|---|
| Minimum Illumination (50 IRE) |
Color: 1.0 lx (F2.0, VE OFF, AGC MAX, 1/30 s, 30 fps) |
|---|
| Minimum Illumination (30 IRE) |
Color: 0.5 lx (F2.0, VE OFF, AGC MAX, 1/30 s, 30 fps) |
|---|
| Dynamic Range |
More than 60 dB |
|---|
| Gain |
Auto |
|---|
| Shutter Speed |
1/1 s to 1/10,000 s |
|---|
| Exposure Control |
Exposure compensation, AGC, Shutter speed |
|---|
| White Balance |
ATW, ATW-PRO, Fluorescent lamp, Mercury lamp, Sodium vapour lamp, Metal halide lamp, White LED, One push WB, Manual |
|---|
| Lens |
Fixed lens |
|---|
| Powered Zoom |
No |
|---|
| Easy Zoom |
No |
|---|
| Zoom Ratio |
No |
|---|
| Powered Focus |
No |
|---|
| Auto Focus |
No |
|---|
| Easy Focus for Setup |
No |
|---|
| Horizontal Viewing Angle |
120° |
|---|
| Vertical Viewing Angle |
64.0° |
|---|
| Focal Length |
f = 1.83 mm |
|---|
| F-Number |
F2.0 |
|---|
| Minimum Object Distance |
500 mm |
|---|
| Number of Preset Positions |
No |
|---|
| Number of Tour Programs |
No |
|---|
| IR Illuminator |
No |
|---|
| IR Working Distance |
No |
|---|
| White-light LED Illuminator |
Yes |
|---|
| LED Working Distance |
3 m |
|---|
Camera Features
| Day/Night |
No |
|---|
| Day/Night linked with Easy Focus |
No |
|---|
| e-Flip |
No |
|---|
| Wide-D |
View-DR LT-C |
|---|
| Tone Correction |
VE (VE) |
|---|
| Defog Image Processing |
No |
|---|
| Noise Reduction |
XDNR |
|---|
| Image Stabilizer |
Yes |
|---|
| Picture Mode |
Yes |
|---|
| Privacy Masking (number) |
20 |
|---|
| Privacy Masking (shape) |
Quadrangle formed by any four corner points |
|---|
| Privacy Masking (color/effect) |
Opaque 14 colors (Black, White, Red, Green, Blue, Cyan, Yellow, Magenta, Gray (6 scales)), Mosaic |
|---|
| Edge Storage |
Yes |
|---|
| Image Memory |
No |
|---|
| Memory Size for Image Memory |
No |
|---|
| Voice Alert |
Yes |
|---|
| Vandal Resistant |
No |
|---|
| Ingress Protection |
No |
|---|
| Superimpose Number |
3 independent positions for characters (Codec, Date & Time, Event, Text (Max. 64 characters)), 1 independent position for a logo mark |
|---|
| Superimpose Language |
English |
|---|
| Menu Language |
English, Japanese, Chinese (simplified), Chinese (Traditional), French, Spanish, German, Italian, Korean, Portuguese, Russian, Arabic, Hindi, Vietnamese, Thai |
|---|
| Smartphone viewer |
Yes |
|---|
Video
| Resolution |
1280 x 720, 1024 x 576, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 180 (H.264, JPEG) |
|---|
| Compression Format |
H.264 (High/Main/Baseline Profile), JPEG |
|---|
| Maximum Frame Rate |
H.264: 30 fps (1280 x 720)
JPEG: 30 fps (1280 x 720) |
|---|
| Bitrate Compression Mode |
CBR/VBR (selectable) |
|---|
| Range of Bit Rate Setting |
64 Kbps to 8 Mbps |
|---|
| Image Cropping |
No |
|---|
| Solid PTZ |
Yes |
|---|
| Adaptive Rate Control |
No |
|---|
| Bandwidth Control |
JPEG |
|---|
| Multi streaming Capability |
Triple streaming |
|---|
| Number of Clients |
5 |
|---|
| Letter Box |
No |
|---|
Intelligent Video/Audio Analytics
| Analytics Architecture |
DEPA Advanced |
|---|
| Intelligent Motion Detection |
Yes |
|---|
| Face Detection |
Yes |
|---|
| Tamper Alarm |
Yes |
|---|
| Advanced Audio Detection |
No |
|---|
| Scene Analytics |
Passing, Appearance, Left Object Detection, Removed Object Detection |
|---|
| Auto Tracking |
No |
|---|
Audio
| Compression Format |
G.711/G.726/AAC (16 kHz, 48 kHz) |
|---|
System Requirements
| Operating System |
Windows XP (32 bit) Professional Edition
Windows Vista (32 bit) Ultimate, Business Edition
Windows 7 (32/64 bit) Ultimate, Professional Edition
Windows 8 Pro (32/64 bit) |
|---|
| Processor |
Intel Core2 CPU 6420 2.13 GHz or higher |
|---|
| Memory |
2 GB or more |
|---|
| Web Browser |
Microsoft Internet Explorer Ver. 7.0, Ver. 8.0, Ver. 9.0, Ver 10.0
Firefox Ver. 19.02 (plug-in free viewer only)
Safari Ver. 5.1 (plug-in free viewer only)
Google Chrome Ver. 25.0 (plug-in free viewer only) |
|---|
Network
| Protocols |
IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, SMTP over HTTP, IPv6, HTTPS, SNMP (v1, v2c, v3), SSL
*SSM (Source Specific Multicast) is supported. |
|---|
| QoS |
DSCP, Wi-Fi Multimedia |
|---|
| Multicast Streaming Support |
Yes |
|---|
| ONVIF Conformance |
Profile S |
|---|
| Wireless Network |
Yes (IEEE802.11b/g/n) |
|---|
| Wi-Fi Certified |
Yes |
|---|
| Wi-Fi Protected Setup (WPS) |
Yes |
|---|
| Authentication |
Wireless: No, Wired:IEEE802.1X |
|---|
Interface
| Analog Video Output |
No |
|---|
| Analog Monitor Output for Setup |
No |
|---|
| Analog Video Output/SLOC Port |
No |
|---|
| SLOC Port |
No |
|---|
| Microphone Input |
Built-in microphone |
|---|
| Line Input |
No |
|---|
| Line Output |
Built-in speaker |
|---|
| Network Port |
10BASE-T/100BASE-TX (RJ-45) |
|---|
| Alarm Input (Sensor Input) |
No |
|---|
| Alarm Output |
No |
|---|
| Serial Interface |
No |
|---|

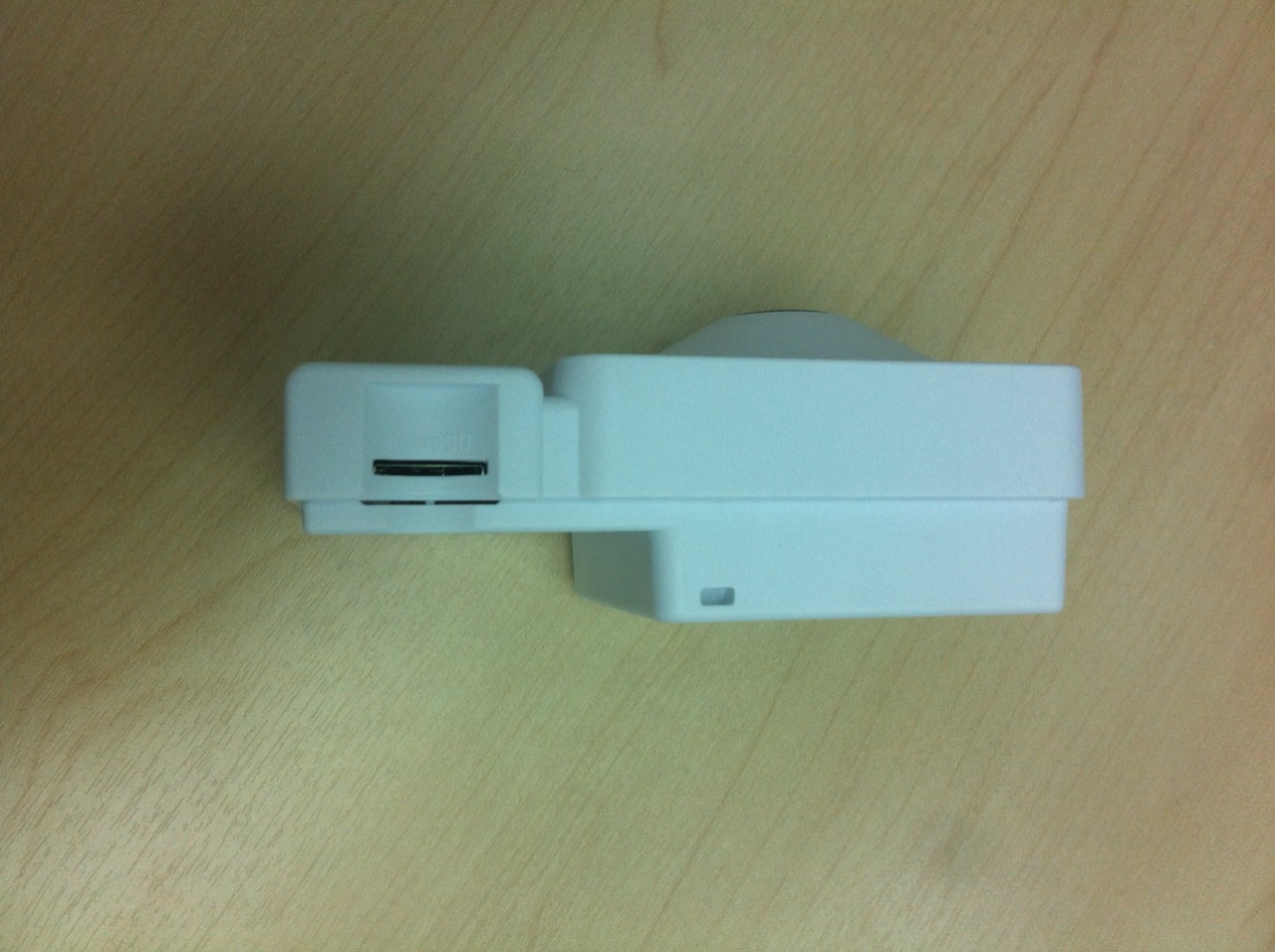

| Card Slots |
micro-SD |
|---|
| Confirmed SD Card Type |
SDHC (no support SDXC) |
|---|
General
| Power Requirements |
DC 5 V |
|---|
| Power Consumption |
5.0 W max. |
|---|
| Operating Temperature |
Wired: 0℃ to 50℃
(Wireless: 0℃ to 40℃)
Wired: 32°F to 122°F (Wireless: 32°F to 104°F) |
|---|
| Storage Temperature |
-20℃ to +60℃
-4°F to +140°F |
|---|
| Operating Humidity |
20% to 80% |
|---|
| Storage Humidity |
20% to 95% |
|---|
| Built-in Heater |
No |
|---|
| Dimensions*1 |
Approx. 61 mm(w) x 95 mm(H) x 41 mm(D)
Approx. 2 13/32 inches x 3 3/4 inches x 1 5/8 inches |
|---|
| Mass |
Approx. 110 g
Approx. 3.9 oz |
|---|
| External Material |
PC (Polycarbonate) |
|---|
| External Color |
White |
|---|
| Fire Retardant |
UL94HB or higher |
|---|
| Safety Regulations |
JATE, UL2044, IEC60950-1, GB4943.1, VCCI Class B, FCC Class B, IC Class B, EN55022 (Class B) + EN50130-4, EN55022 (Class B) + EN55024, EN60950-1, AS/NZS CISPR22 (Class B), RCM, EMC-TR(CU-TR), MSIP |
|---|

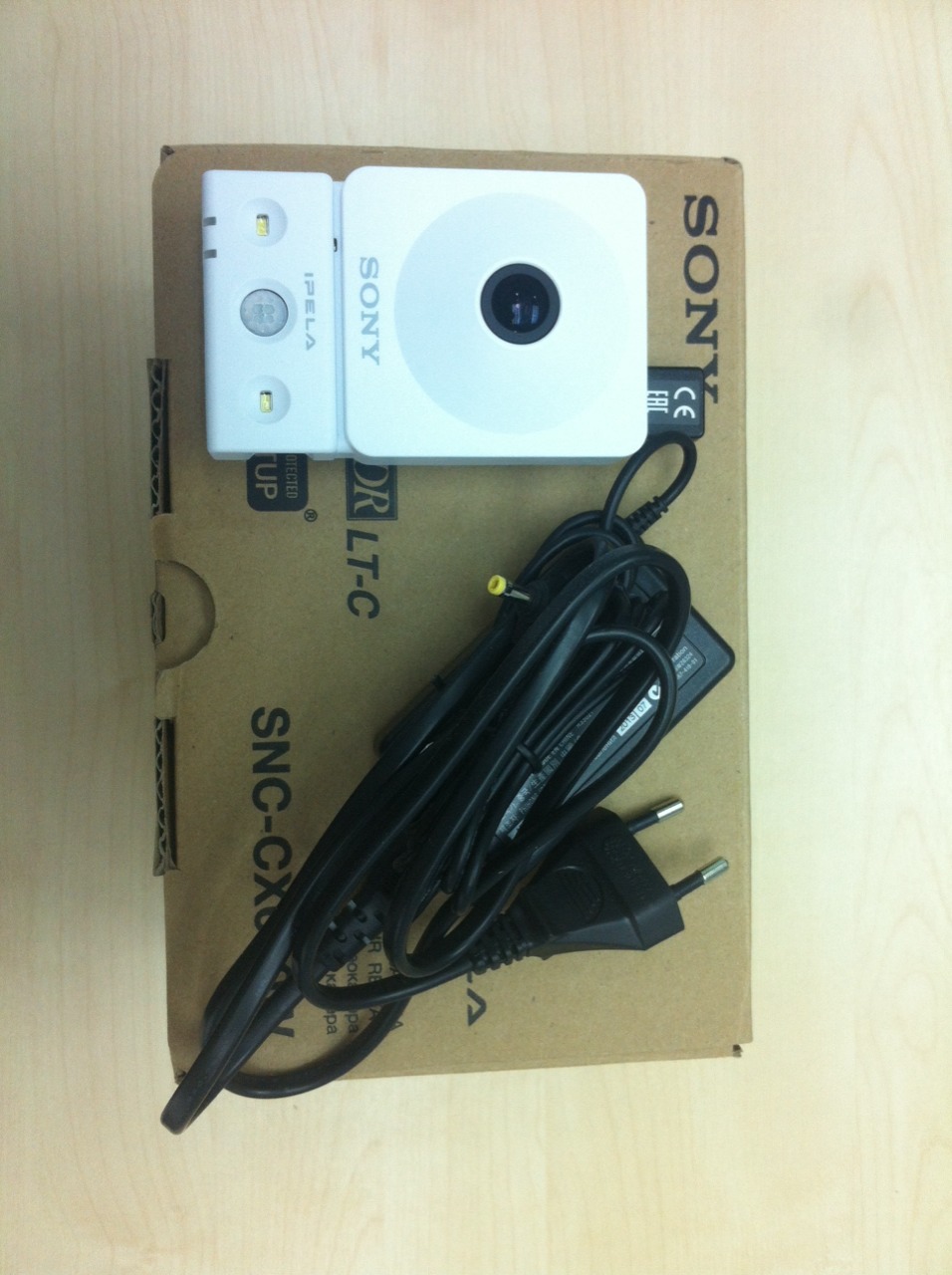

| Supplied Accessories |
Wi-Fi module (1)
AC adapter (1)
Power code (1)
Camera stand (1)
Screws (3)
Installation Manual (1)
Quick Start Guide (1)
Warranty card (1)
Safety regulations for network camera (1)
Safety regulations for USB wireless LAN module (1) |
|---|
Highlights:
- Maximum resolution of 1280 x 720 pixels with the Exmor® CMOS sensor
- Wide horizontal viewing angle of 120°
- White-light LED Illuminators for clear color images in low-light conditions
- Voice Alert function by a built-in speaker
- Passive IR (PIR) sensor for motion detection and control of camera security functions
- Edge Storage for onboard recording with a micro SD/SDHC card
- Image Stabilizer to help minimize the effect of camera shake or vibration to achieve less blurry images
mini Specification:
| Camera Specifications | Detail: |
|---|
| IP/Analog |
IP |
| Type |
Network Fixed HD Camera |
| Image Device |
1/4-type progressive scan Exmor CMOS sensor |
| Effective Pixels |
Approx. 1.3 Megapixels |
| Minimum Illumination |
Color: 1.0 lx (F2.0, VE OFF, AGC MAX, 1/30 s, 30 fps)
Color: 0.5 lx (F2.0, VE OFF, AGC MAX, 1/30 s, 30 fps) |
| Lens Mount |
Fixed lens |
| Lens Type |
Fixed lens |
| Focal Length |
f = 1.83 mm |
| F-Number |
F2.0 |
| Compression Format |
H.264 (High/Main/Baseline Profile), JPEG |
| Wide-D |
Yes |
| Minimum Object Distance |
500 mm |
| White Balance Mode |
ATW, ATW-PRO, Fluorescent lamp, Mercury lamp, Sodium vapor lamp,
Metal halide lamp, White LED, One push WB, Manual |
| Horizontal Viewing Angle |
120° |
| Electronic Shutter |
1/1 s to 1/10,000 s |
| Exposure Control |
Exposure compensation, AGC, Shutter speed |
| Gain |
Auto |
| Other Functions |
White-light LED Illuminator - Yes
LED Working Distance - 3 m
Wide-D - More than 60 dB
Tone Correction Visibility Enhancer (VE)
Noise Reduction - XDNR Technology
Image Stabilizer - Yes
|
| Image Specifications | Detail: |
|---|
| Compression Format |
H.264 (High/Main/Baseline Profile), JPEG |
| Frame Rate |
H.264: 30 fps (1280 x 720)
JPEG: 30 fps (1280 x 720) |
| Interface Specifications | Detail: |
|---|
| Network |
10BASE-T/100BASE-TX (RJ-45) |
| External Microphone Input |
Built-in microphone |
| Audio Line Output |
Built-in speaker |
| Audio Specifications | Detail: |
|---|
| Audio Compression |
G.711/G.726/AAC (16 kHz, 48 kHz) |
| General Specifications | Detail: |
|---|
| Weight |
Approx. 3.9 oz |
| Dimensions (W x H x D) |
Approx. 2 13/32 inches x 3 3/4 inches x 1 5/8 inches |
| Power Requirements |
IEEE802.3af compliant (PoE system) |
| Power Consumption |
5.0 W max. |
| Operating Temperature |
32°F to 122°F (0°C to 50°C) |
| Storage Temperature |
-4°F to +140°F |
| Storage Humidity |
20% to 95% |
| Compression |
H.264 or JPEG |
| FPS |
variable up to 30 |
| Resolution |
1.3 megapixel/720p |
| Network Specifications | Detail: |
|---|
| Protocols |
IPv4, TCP, UDP, ARP, ICMP, IGMP*, HTTP, DHCP, DNS, NTP, RTP/RTCP,
RTSP over TCP, RTSP over HTTP, SMTP, IPv6, HTTPS, SNMP (v1, v2c, v3), SSL |
| Number of Clients |
5 |
| Authentication |
IEEE802.1X |
| System Requirements Specifications | Detail: |
|---|
| Operating System |
Windows XP (32 bit) Pro. Ed., Vista (32 bit) Ultimate Bus. Ed., Windows 7 (32/64 bit) Ultimate, Pro. Ed.,Windows 8 Pro (32/64 bit) |
| Processor |
Intel Core2 CPU 6420 2.13 GHz or higher |
| Memory |
2 GB or more |
| Web Browser |
MS® IE® Ver 7.0-10.0 Firefox® Ver 19.02; Safari® Ver 5.1; Chrome® Ver 25 (plug-in free viewer only)
|
|
