NSA325 v2 2-Bay Power Plus Media Server

   สั่งสินค้า หรือ ต้องการสอบถามเพิ่มเติม คลิกที่หนู เลยค่ะ <---

System Specifications

Networking

• Network protocol:
  • CIFS/SMB, NFS (for Linux/Unix)
  • FTP, HTTP
  • DHCP client
  • PPPoE
  • Network Time Protocol (NTP)
• Network applications:
  • Personal Cloud with Polkast support
  • Media server:
            - DLNA 1.5 media server
            - UPnP AV server
            - iTunes server
            - SqueezeCenter support
            - Photo album server

  • Web server:
            - FTP server
            - phpMyAdmin/MySQL/PHP
            - RSS client & server

  • Smartphone application:
    • zMedia for NSA configuration, system status monitoring, file browsing and media playback
  • Network application management:
    • User & group management
    • Package Management for setting up applications
    • One-click-hosting sites download manager
  • Network security:
    • Support HTTPS and FTPES (FTP over explicit TLS/SSL)
    • Encrypted NSA to NSA remote replication
    • Encrypted NSA to external disk archive backup

Data Management

• Backup support:
  • One-touch copy/sync button for external USB-capable devices backup
  • Backup planner:
  - Instant/Scheduled backup


  - NSA to NSA synchronization/archive backup


  - NSA to external USB hard disk backup


  • Dropbox Suppor
  • Apple Time Machine support
• Download/Upload support:
  • Auto-download from FTP/HTTP/P2P download service
  • Scheduled download
  • One-click hosting sites downloading
  • Auto-upload photos and videos to YouTube/Flickr/FTP server
• File system support:
  • Internal HDD: EXT4
  • External HDD: NTFS, EXT2, EXT3, EXT4, FAT32, ReiserFS, XFS

System Management

• RAID 0, 1, JBOD
• Online firmware upgrade
• Self-Monitoring Analysis and Reporting Technology (S.M.A.R.T.)

Power and Thermal Management

• Power control:
  • Internal disk hibernation support
  • Scheduled power on/off/reboot
  • Wake-on-LAN support
  • System automatically resume after power outage
  • APC USB UPS monitoring and auto shutdown
• Thermal management:
  • Smart fan speed control
  • High temperature alert/buzzer
  • Auto shutdown while high temperature

Application Package Center

• Backup Planner
• Gallery
• NZBGet
• PHP-MySQL
• Polkast
• SqueezeCenter
• Transmission
• WrodPress

Minimum System Requirements

• OS for utility: Windows XP/Vista/7 (32 & 64 bit)/8  (32 & 64 bit)
• Browser: IE 7.0+, Firefox 20+, Google Chrome 10+, Safari 5+

Hardware Specifications

• 2.5” or 3.5” SATA I/II hard disk interface supported
• One Gigabit Ethernet RJ-45 connector
• Two USB 2.0 ports
• One USB 3.0 port
• Buttons:
  • Power button
  • Copy/Sync button
  • Reset button
• Smart fan design
• Power consumption:
  • Access mode: 27 watt
  • Hard disk spin-down mode: 7 watt
• Power:
  • Input: 100 - 240 V AC,50/60Hz
  • Output: 12V DC, 5A
• Front Panel:

• Rear Panel:

Physical Specifications

• Item dimensions (WxDxH): 207 x 164 x 123 mm (8.15" x 6.46" x 4.84")
• Item weight: 1,257 g (2.77 lb.)
• Packing dimensions (WxDxH): 280 x 173 x 275 mm (11.02" x 6.81" x 10.82")
• Packing weight: 2,260 g (4.99 lb.)

Environmental Specifications

• Operating Environment
  • Temperature: 0ºC to 40ºC (32ºF to 104ºF)
  • Humidity: 10% to 95% (Non-condensing)
• Storage environment
  • Temperature: -30ºC to 70ºC (-22ºF to 158ºF)
  • Humidity: 10% to 95% (Non-condensing)

Certification

• Safety: CE LVD, BSMI
• EMC: CE, FCC class B, C-Tick, BSMI
• Others: DLNA 1.5, UPnP

Package Contents

• Network storage device
• Power adapter
• Ethernet cable
• Quick start guide
• Support CD
• Warranty card





Hybrid cloud media center for home

Consolidate your clouds in ZyXEL’s Media Servers. The ZyXEL Media Servers work with a wide variety of public cloud services including Dropbox, Google Drive, Memopal and more! Alternatively, you can create your own private cloud with ownCloud or Polkast for a secured private cloud data. Backup, playback and download files freely anywhere you go with ZyXEL’s Media Servers.

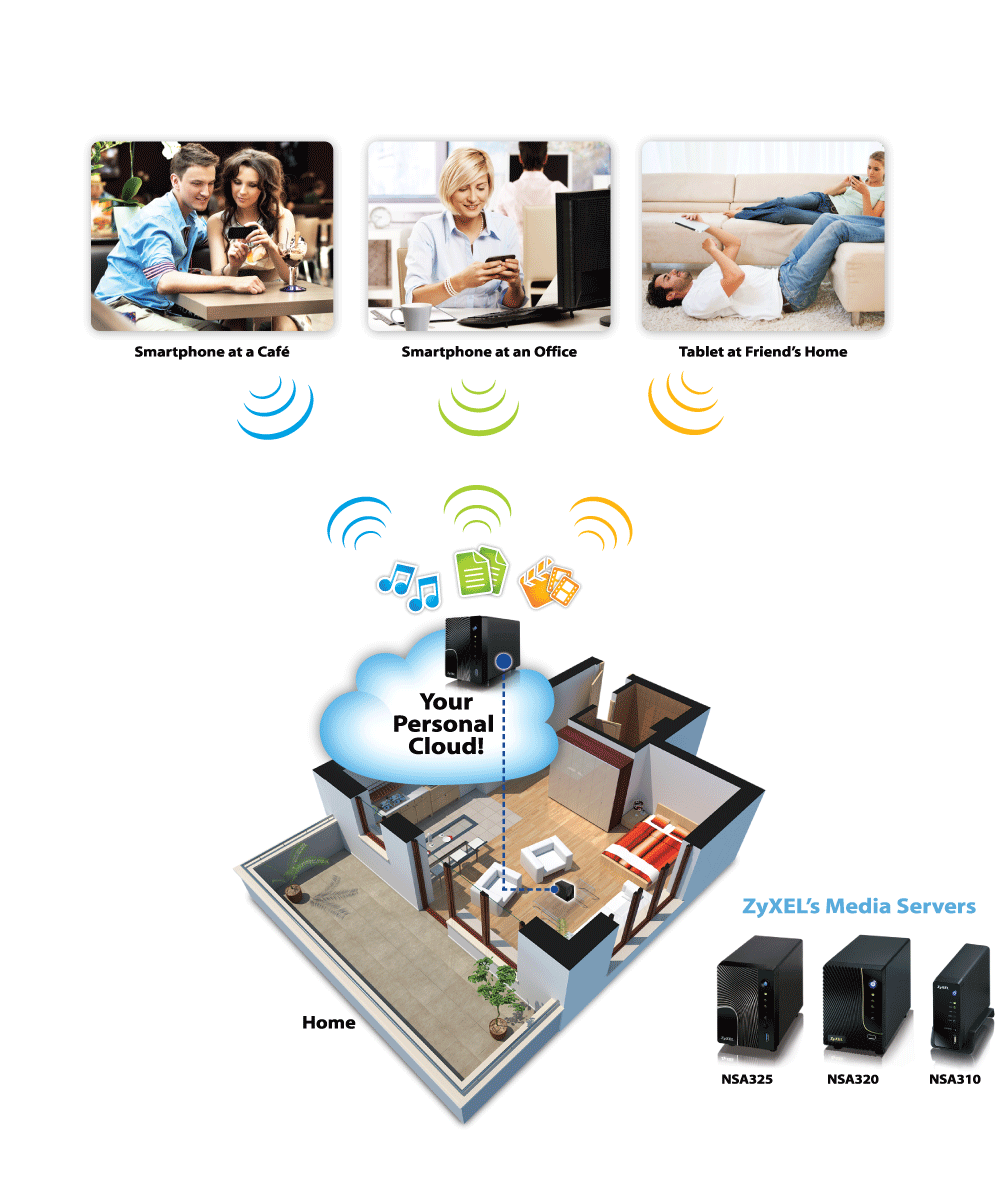

Access, Share and Enjoy It Everywhere!

With the latest personal cloud feature of ZyXEL’s Media Servers, you can freely access, share and enjoy digital media contents through your smartphones and tablets with the Polkast app, no matter where you are!



		Share with your family over home network Want to share the photos and videos taken in family trips or your children’s birthday parties stored in your laptop or PC? Just store all of your favorite photos, music, videos from your PC to the NSA325, as your centralized digital media library, and your family can immediately access the files on their laptops and tablet PCs over your home network.
Enlarge

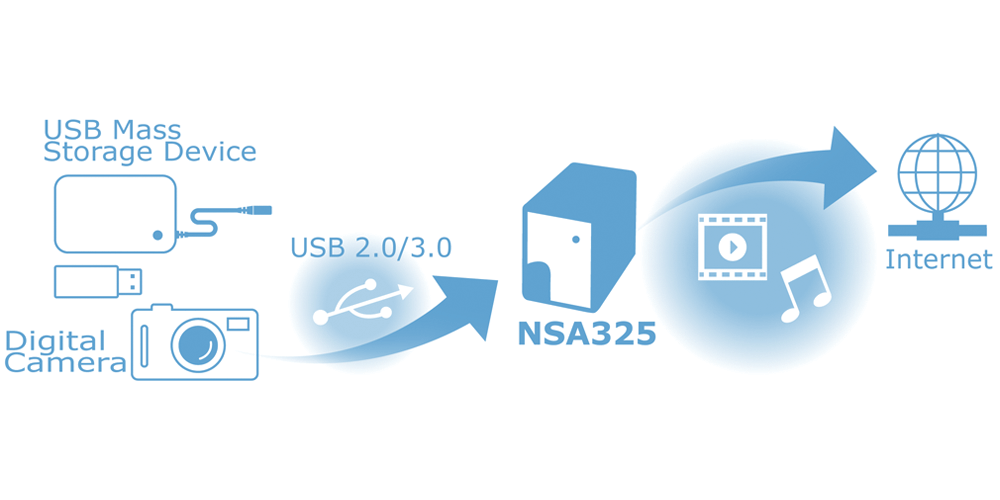

		Share with your friends in a snap Without powering up your PC or laptop, just plug your digital cameras, smart phones or USB mass storage devices into the NSA325’s USB ports and push the copy/sync button* to save the photos and videos in the NSA325. Few minutes later, your newly-added photos and videos will be utomatically uploaded by the NSA325 to the social media sites like Flickr and YouTube and ready to share with your friends! The embedded USB 3.0 port on the NSA325 bring faster data backup speed to and from USB mass storage devices or digital cameras. *It is recommended to create a specific share first for back files.
