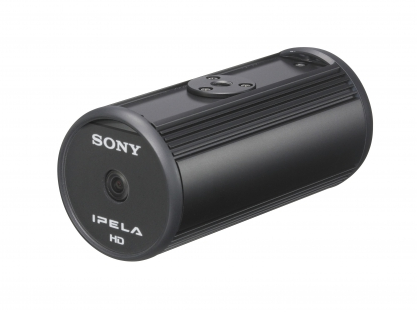

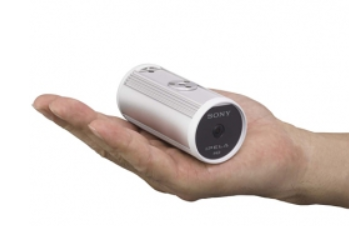

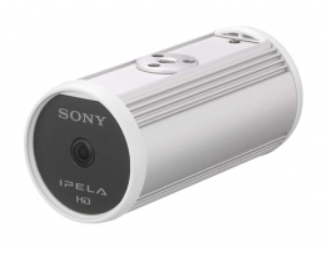

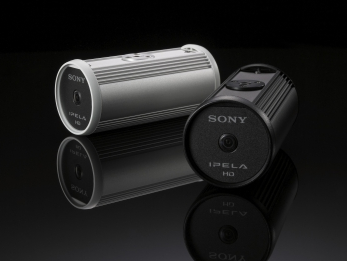

Sony IP camera SNC-CH110

Highlights:

• 720p HD Resolution Picture Quality
• 1.3 Megapixel
• Three Codecs - H.264, MPEG-4, and JPEG
• Dual Streaming Capability
• "Exmor" CMOS Sensor
• Electrial Day/Night function

• Intelligent Motion Detection reduces false positives
• Tampering Alarm detects attempts like spray painting
• Stream Squared function optimizes bandwidth and storage capacity
• Power-over-Ethernet
• ONVIF conformace

  Camera Specifications	Detail:
  IP/Analog	IP
  Image Device	1/3.8 type CMOS sensor
  Effective Pixels	1.3 Megapixel (1296×985)
  Minimum Illumination	5.0lx / AGC 30dB / 50IRE[IP]
  Lens Type	Fixed
  Focal Length	f=2.34
  F-Number	F2.8
  Compression Format	H.264, MPEG-4, JPEG
  Day Night	Yes (Electrical day/night)
  Wide-D	Yes
  Minimum Object Distance	500 mm
  White Balance Mode	Auto (ATW, ATW-PRO), Preset, One-push WB, Manual
  Horizontal Viewing Angle	80.7 degrees
  Electronic Shutter	1/2s to 1/10000s
  Exposure Control	Auto, EV Compensation, Auto Slow Shutter
  Gain	Auto
  Other Functions	Wide-D/Dynamic Range - Better than 60 dB Noise reduction - Yes

  Image Specifications	Detail:
  Image Size	1280 x 960, 1280 x 720, 1024 x 768, 1024 x 576, 800 x 480, 768 x 576, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 640 x 368, 384 x 288, 320 x 240, 320 x 192, 176 x 144 (H.264, MPEG-4, JPEG)
  Compression Format	H.264, MPEG-4, JPEG
  Frame Rate	JPEG / MPEG-4 / H.264: 30fps (1280×960 / 1280x720)

  Analog Video Output Specifications	Detail:
  Signal System	NTSC / PAL

  Interface Specifications	Detail:
  Network	10BASE-T / 100BASE-TX (RJ-45)

  General Specifications	Detail:
  Power Requirements	PoE (Class 1) (IEEE802.3af compliant)
  Power Consumption	2.4 W max.
  Operating Temperature	32°F to 122°F (0 °C to 50 °C)
  Storage Temperature	-4°F to +140°F (-20 °C to +60 °C)
  Compression	H.264, MPEG4, JPEG
  FPS	variable up to 30
  Resolution	1.3 megapixel/720p
