HP A5120-24G EI Switch (JE066A)

Functionality: Layer 3 Static

Predominant Port Type: Gigabit Copper

Uplink Type:

    10/100/1000 Copper
    1000MB Fiber

High Availability Features:

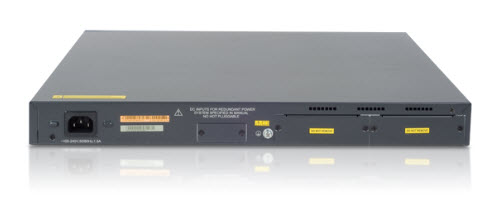

    Redundant Power

The HP 5120G Series Gigabit devices are fully managed enterprise-class switches supporting Layer 3 static routing. This model operates in standalone mode and only supports Gigabit ports.

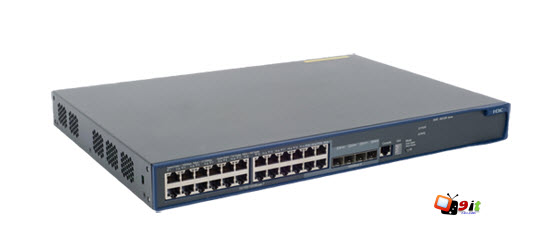

    This model has 24x 10/100/1000 ports including four dual personality SFP ports for fiber connectivity.
    Enterprise-class manageability includes Command Line Interface, Web interface, and full SNMP support.

Fully Managed Switch

IPv6 Host / Management

Features

Quality of Service (QoS)

        Broadcast control: allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic

        Advanced classifier-based QoS: classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or whole switch

        Powerful QoS feature: supports the following congestion actions: strict priority (SP) queuing, weighted round robin (WRR), and SP+WRR

        Traffic policing: supports Committed Access Rate (CAR) and line rate

Performance

        Nonblocking architecture: up to 192 Gbps nonblocking switching fabric provides wire-speed switching with up to 143 million pps throughput

        Hardware-based wire-speed access control lists (ACLs): helps provide high levels of security and ease of administration without impacting network performance with a feature-rich TCAM-based ACL implementation

Specifications

    Ports

            24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)
Duplex: 10BASE-T/100BASE-TX: half or full
            1000BASE-T: full only
            4 dual-personality ports
autosensing 10/100/1000BASE-T or SFP
            1 RJ-45 serial console port

    Memory and processor
        128 MB SDRAM, packet buffer size: 2 MB, 16 MB flash

    Latency

            1000 Mb Latency: < 3.2 µs

    Throughput
        35.7 million pps

    Routing/switching capacity
        48 Gbps

    Management features

            IMC - Intelligent Management Center
            command-line interface
            Web browser
            SNMP Manager

Power and operating requirements

    Power consumption
        62 W (maximum), 35 W (standby)

    Input voltage
        100-240 VAC

    Operating temperature range
        0 to 45°C

    Operating humidity range
        10 to 90% (noncondensing)

    Heat dissipation
        212 BTU/hr (223.66 kJ/hr)

Dimensions and weight

    Minimum dimensions (W x D x H)
        44 x 30 x 4.36 cm

    Weight
        4.5 kg

What's included

    Warranty
        Lifetime, advance replacement, next business day, phone support, software releases
